HOW IT WORKS?
![](https://cdn.myportfolio.com/47bf6bde-ddb5-4a21-9b52-f5ce0760f978/abffa94a-9174-4185-a576-71626b6a878f_rw_1920.png?h=88dff670ca2caec764b69c84c5ac2d6e)

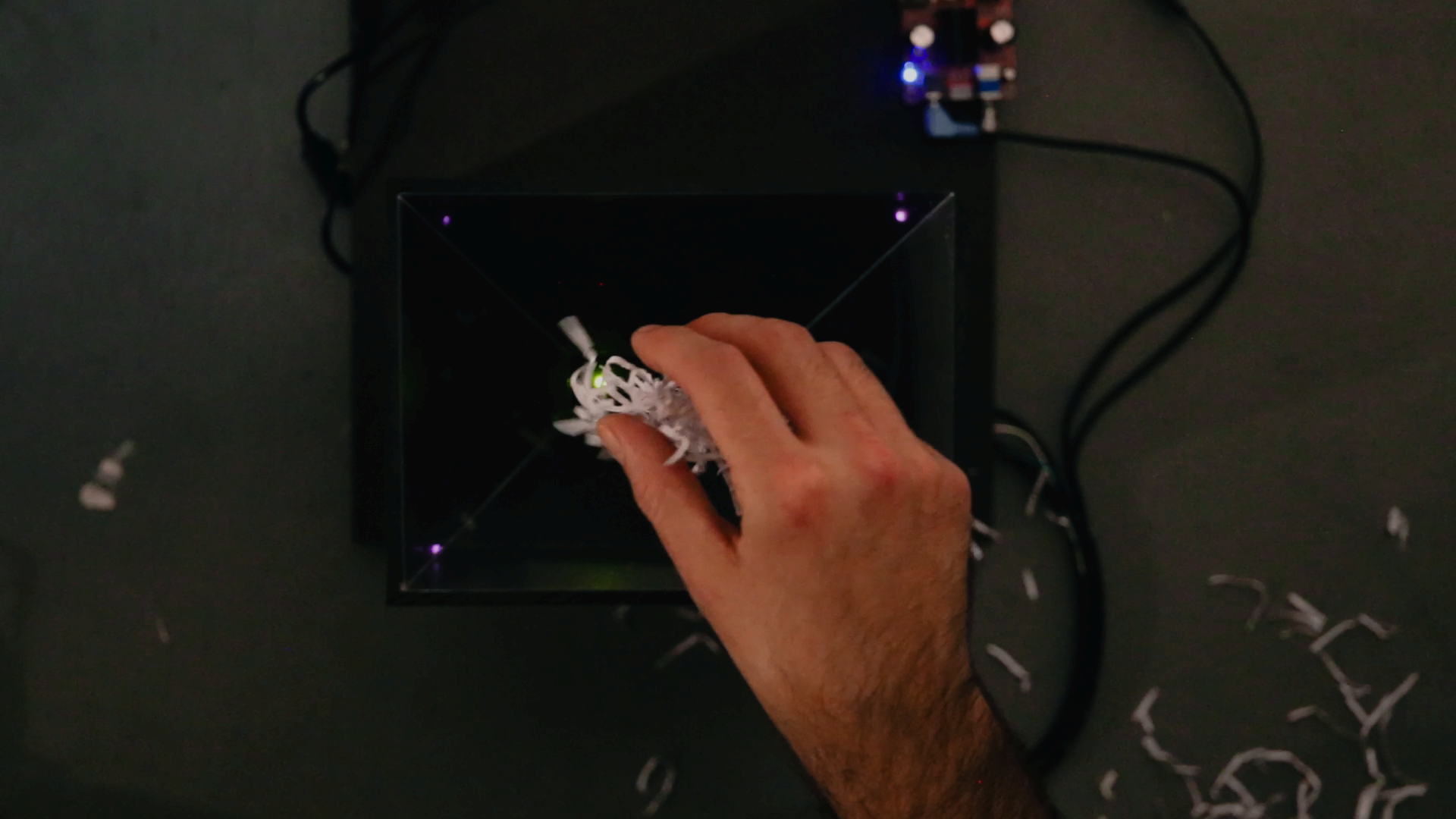

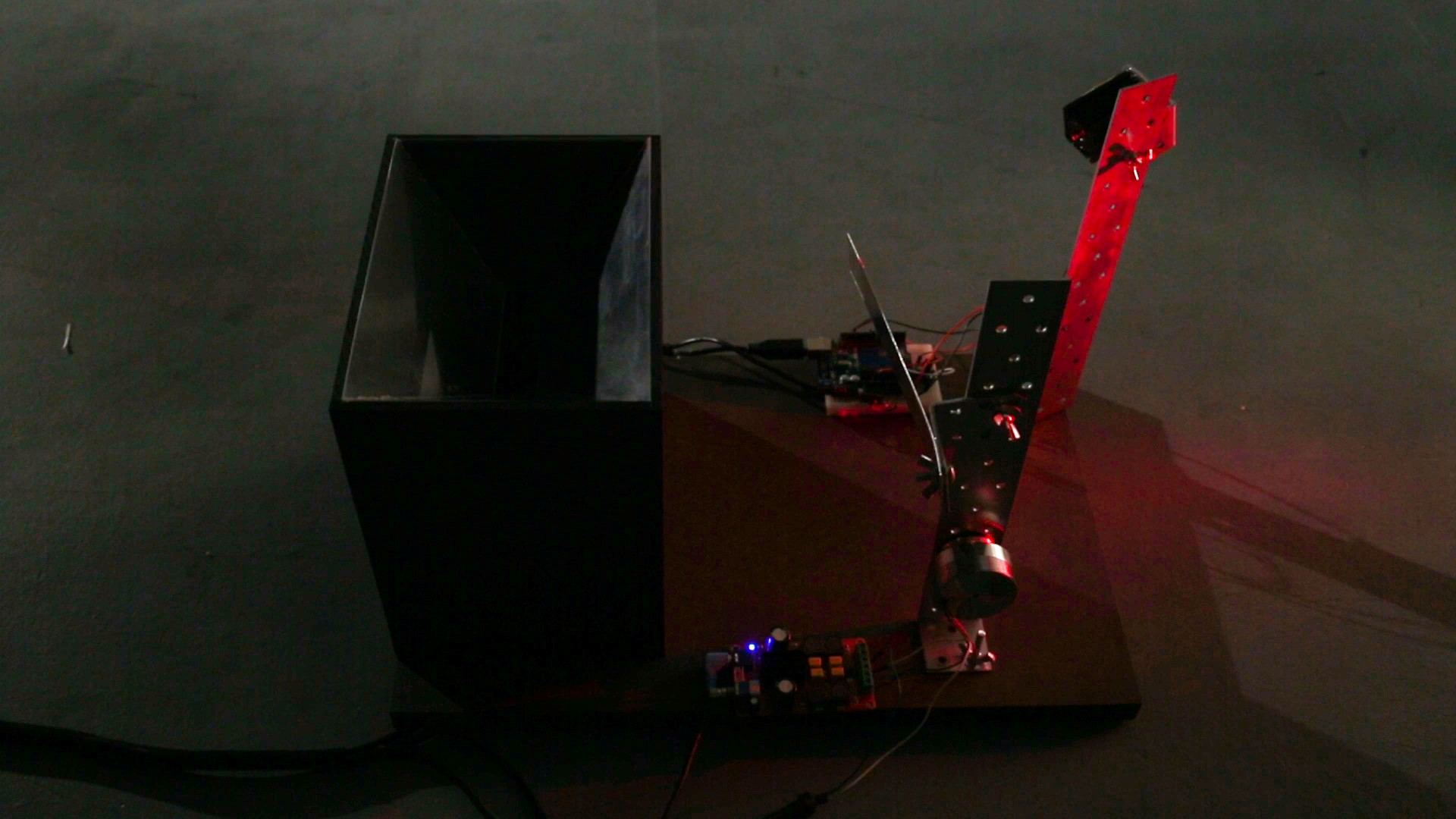

To use this machine, the user feeds the device with snippets of paper. A camera located under a feeding surface captures the fluctuations of brightness depending on the amount of paper.
![](https://cdn.myportfolio.com/47bf6bde-ddb5-4a21-9b52-f5ce0760f978/da80bade-b8a8-4d8b-9fc5-7626e4f669c9_rw_1920.png?h=26c2f4da55c1ea868feab36b0d323a66)

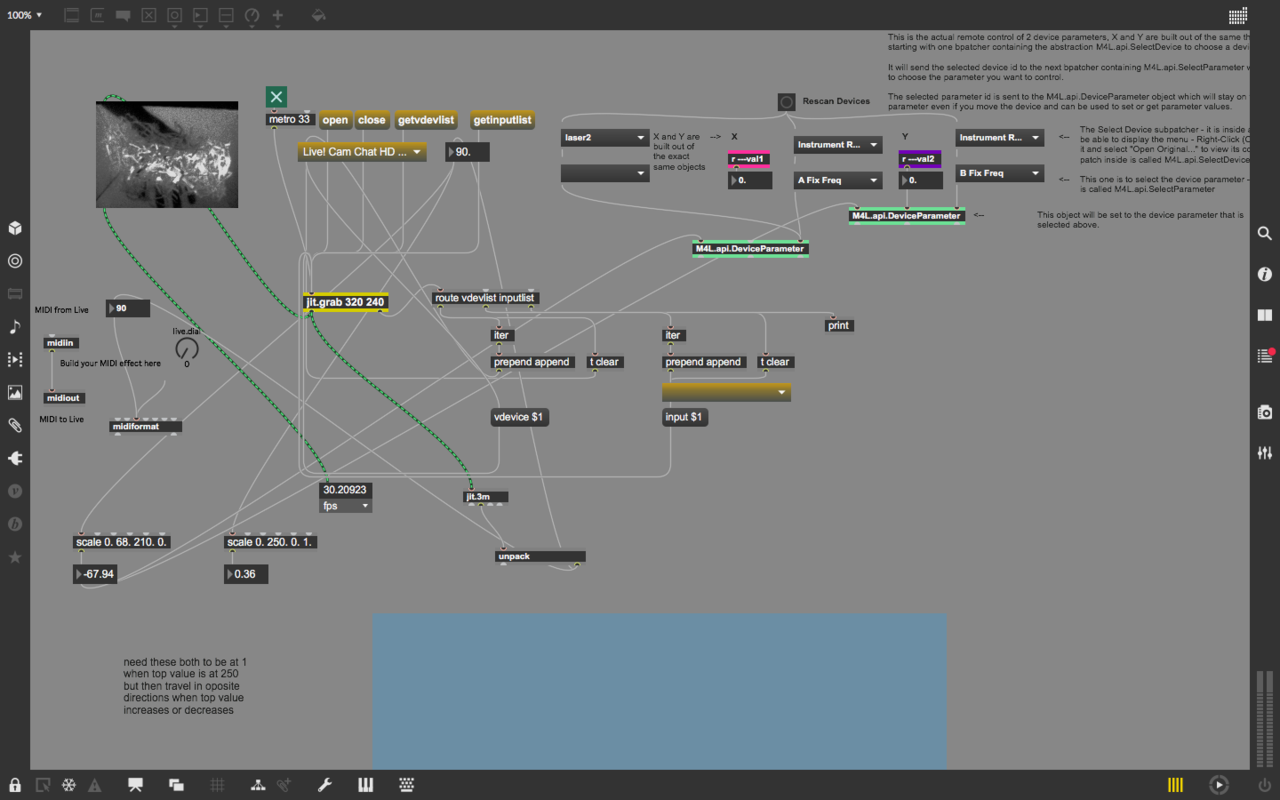

The visual information is transferred to two software on the computer. Max/MSP translates visual information to data, and the music software Ableton Live, which receives the incoming data. In this software is located a synthesizer, its parameters fluctuate depending on the information received from Max MSP. The synthesizer-generated frequencies are afterward transduced to an audio output and directed to an external soundcard.
![](https://cdn.myportfolio.com/47bf6bde-ddb5-4a21-9b52-f5ce0760f978/2ddf17b7-331d-4830-b8fb-d5c6552873d7_rw_1920.png?h=05ce01ac4e736d50b54e49b585a8e99a)

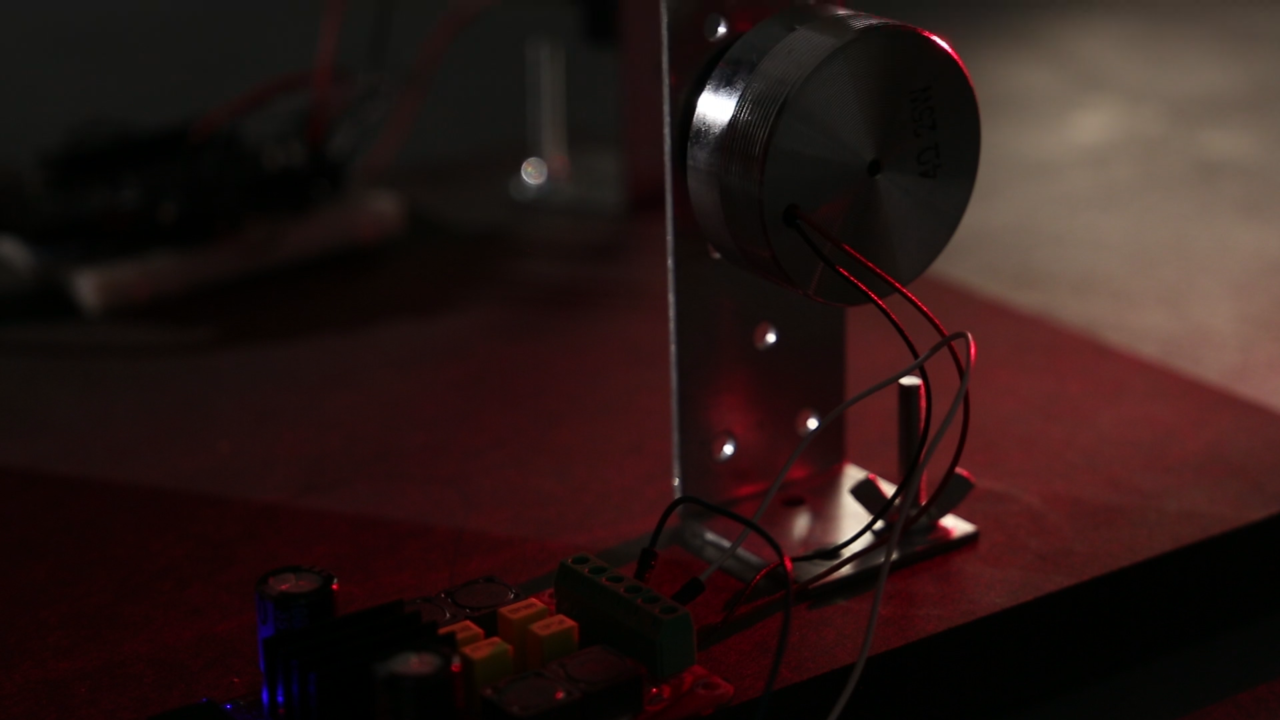

The audio signal is connected to a vibration speaker. Unlike the standard speakers, it has a vibration coil that generates strong physical vibrations.
![](https://cdn.myportfolio.com/47bf6bde-ddb5-4a21-9b52-f5ce0760f978/c949c3cd-a871-408f-be10-0bb4c89b0d7e_rw_1920.png?h=a563898b507241d750b5d33a8cfa06de)

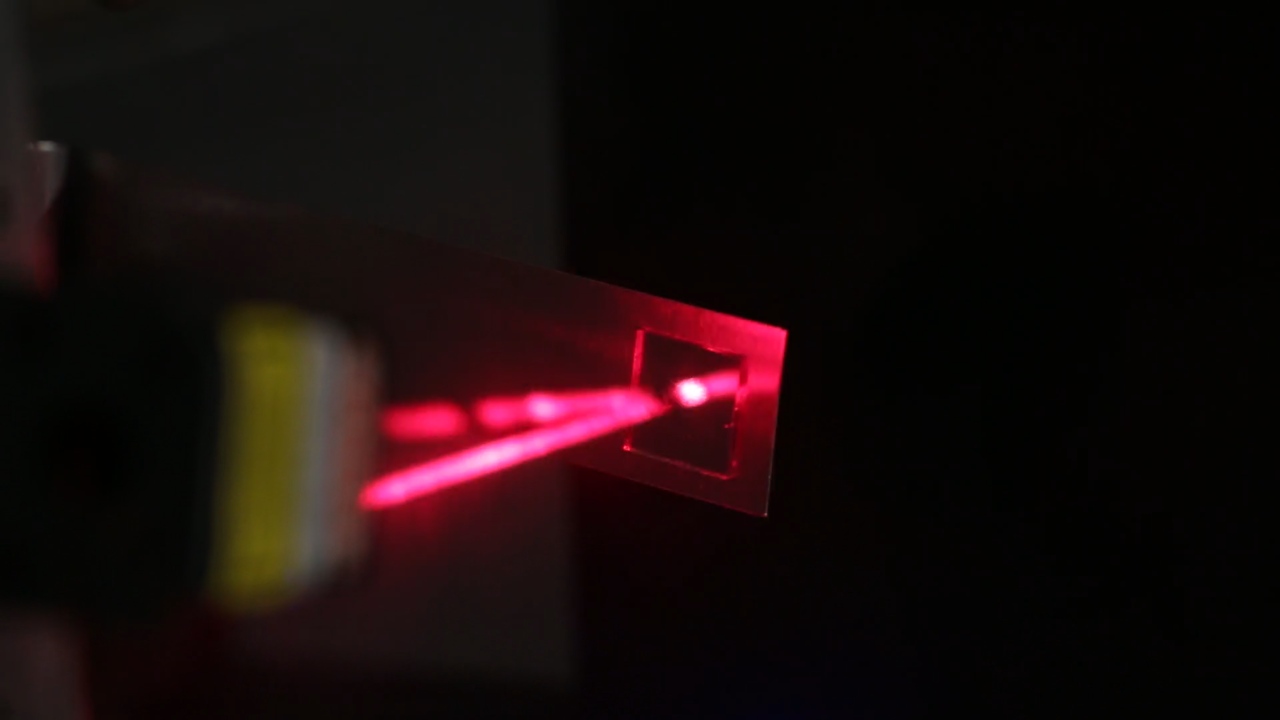

The vibration speaker has been attached to a mirror, which oscillates depending on the frequency generated by the synthesizer.
![](https://cdn.myportfolio.com/47bf6bde-ddb5-4a21-9b52-f5ce0760f978/4a07e477-5e96-417b-a329-15404e3a8d1e_rw_1920.png?h=fe4bb6a4acec0f090dfd0fb3003caa26)

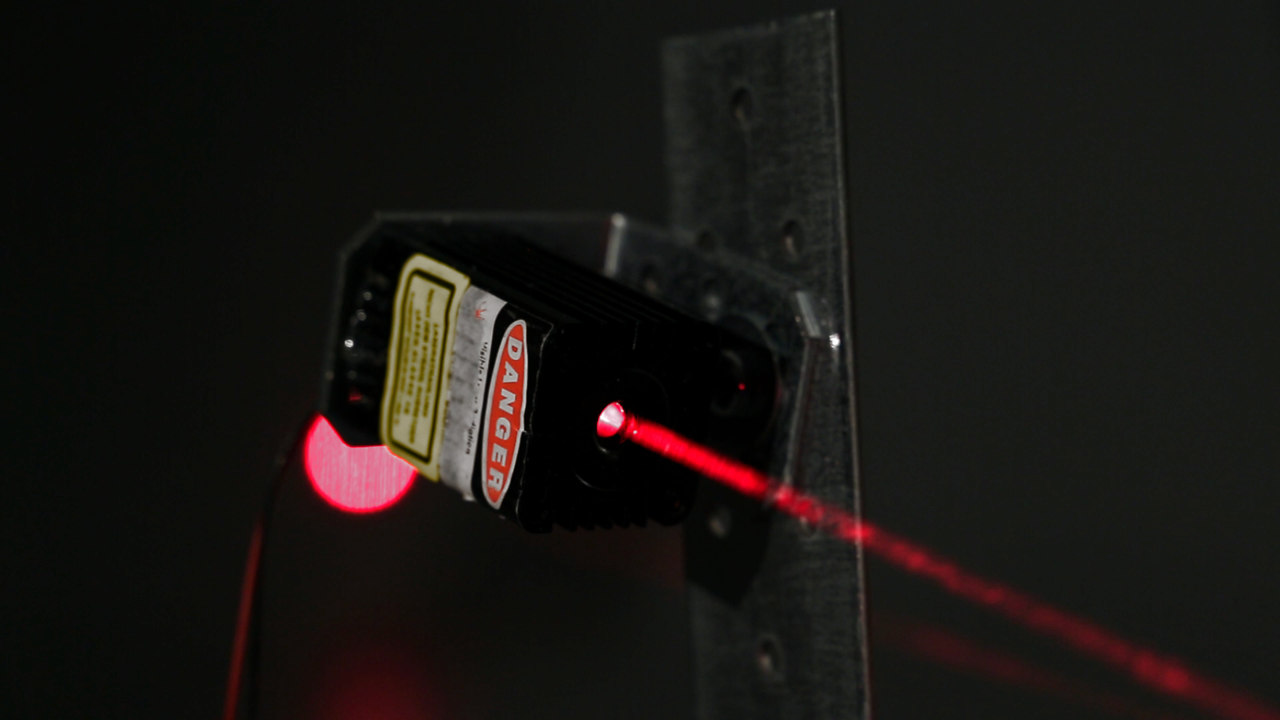

A laser located near the mirror blasts a beam and makes the physical oscillation visible by its reflection.
![](https://cdn.myportfolio.com/47bf6bde-ddb5-4a21-9b52-f5ce0760f978/177e41f5-58f9-4192-b71b-dbe0d05eabac_rw_1920.png?h=87d10e0f9a83bbbc78554ddebf25cdab)
